Product deion：

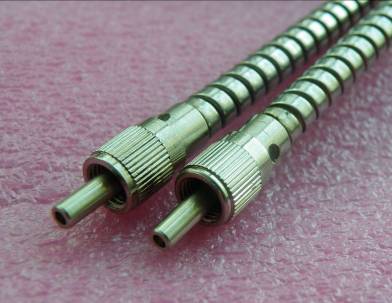

    The SMA-905 metal connector with tip clearance and air gap protection is used to assemble the core fiber with large core diameter, which can meet the output energy laser transmission of general semiconductor laser/module and low power solid-state laser. Upgraded gem ring protection (Mode Striper), to further enhance the energy damage threshold and fiber life, to meet the laser welding, cutting and other high power transmission needs.

    Main features:

    1.Fiber double-center grip, good orientation

    2.No glue process optional

    3.High quality stainless steel hose protection

    4.Long-distance special anti-pull armor

    5.protection type optional

    6.Large core energy fiber, a variety of optional specifications

    Main applications:

    1.Semiconductor / fiber laser output pigtail

    2.Laser cladding, hair and other high-power flexible transmission

    3.Laser welding, cutting

    4.Atmospheric spectral measurement, infrared temperature measurement

    5.Infrared lighting, camera fill light

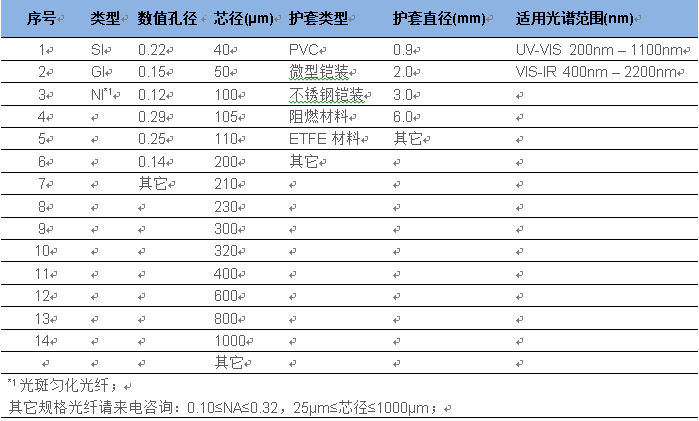

    Optional fiber specifications：

    SMA-905 Connector size：
