Product deion：

    Using the system coaxial CCD camera and monitoring device, to be welded to the workpiece positioning. The laser control unit receives the positioning completion signal and turns on the laser to perform local irradiation on the welding area for a set time。

    Laser welding system is a laser diode (LD) as a heat source, through the implementation of local non-contact laser heating, it has non-contact, without the need to replace the tip, laser beam diameter and other advantages. In particular, some parts of the wave does not apply, the return of the parts, only through the after-loading process, the use of local heating method to complete the assembly of the product, the main features。

    (1). Fine point diameter (Spor): The laser can form the smallest diameter to 0.1mm, tin-sending device can be the smallest to 0.2mm, can achieve micro-pitch placement devices, Chip parts of the welding

     (2). Because it is a short time of local heating, substrate and peripheral parts of the thermal effects of small, good quality solder joints

    (3).No tip consumption, no need to replace the heater, continuous operation, with high operating efficiency.

    (4).Lead-free soldering, the less prone to solder joint cracks.

    Main applications：

    1.Stainless steel, aluminum, copper and other metal welding.

    2.Plastic and other non-metallic cladding.

    3.Circuit boards, aluminum wire welding.

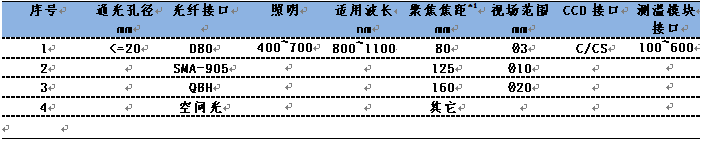

    Product specifications：

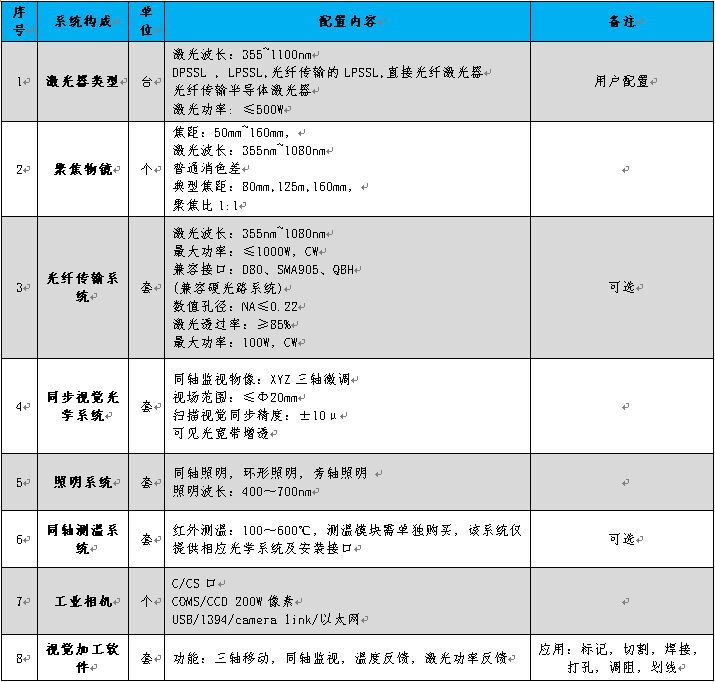

     The following is a complete set of optical positioning with a single focus of optical processing system configuration：

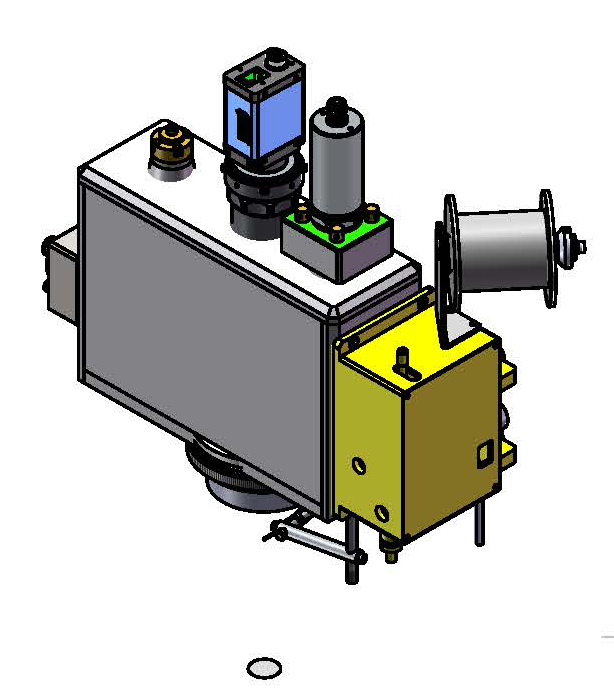

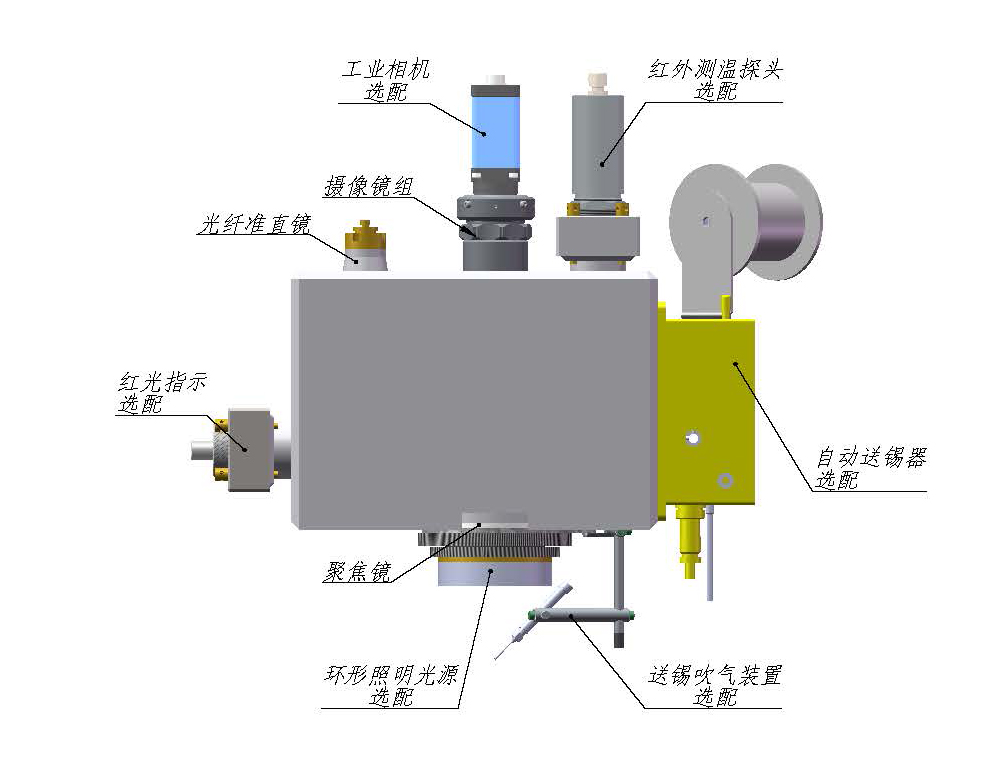

     The following is a schematic diagram of the structure：
