Product deion:

    D80 and SMA-905 interface is optional, suitable for fiber-coupled semiconductor laser and YAG laser welding system, the use of composite lens structure, to effectively eliminate the light pump YAG laser monocular lens focus brought about by halo, halo and other poor focus.

    Main feature:

    1.D80, SMA-905 fiber optic interface.

    2.With fiber optic protection sleeve

    3.support 500W power continuous welding

    4.Flexible structure for a variety of welding platforms

    5.Coaxial CCD monitoring interface is optional

    6.Water cooling protection is optional

    7.Optional anti-reflection protection with gem ring

    Main applications:

    1.Stainless steel, aluminum, copper and other metal welding

    2.Plastic and other non-metallic cladding

    3.Circuit boards, aluminum wire welding

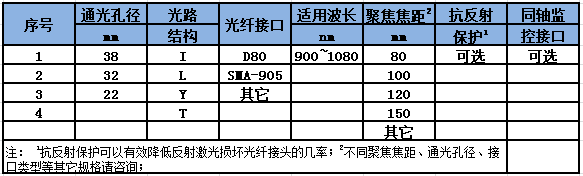

    Product specifications:

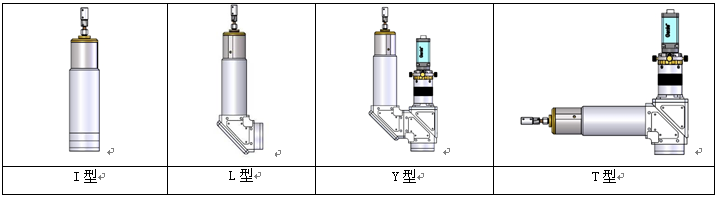

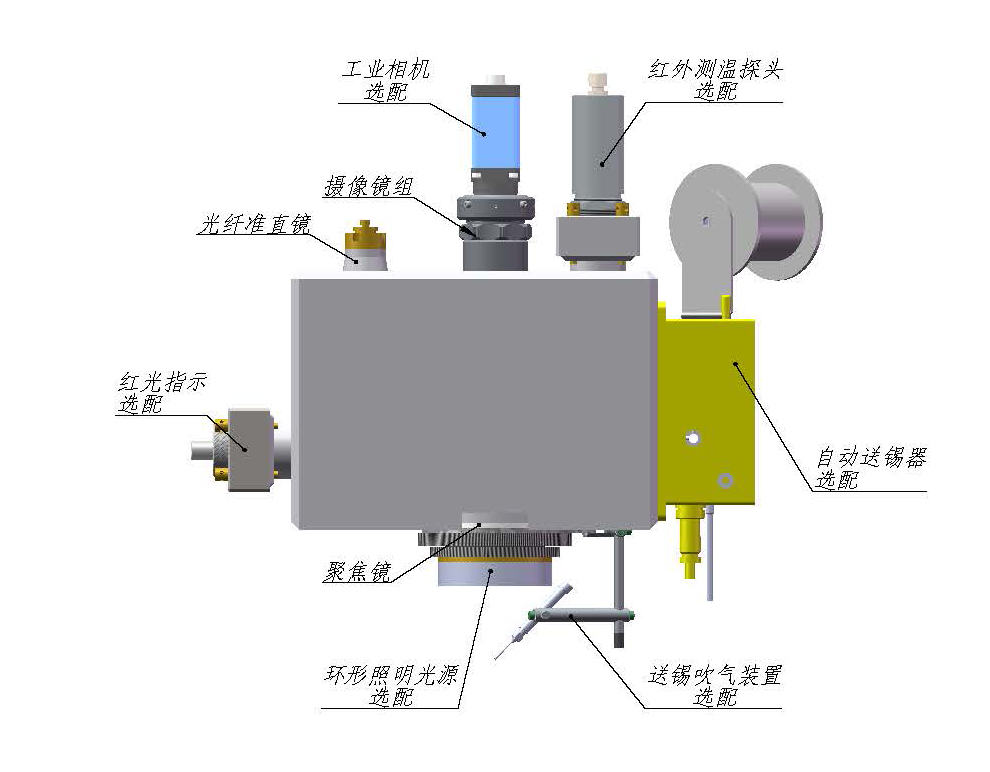

    Product structure:
